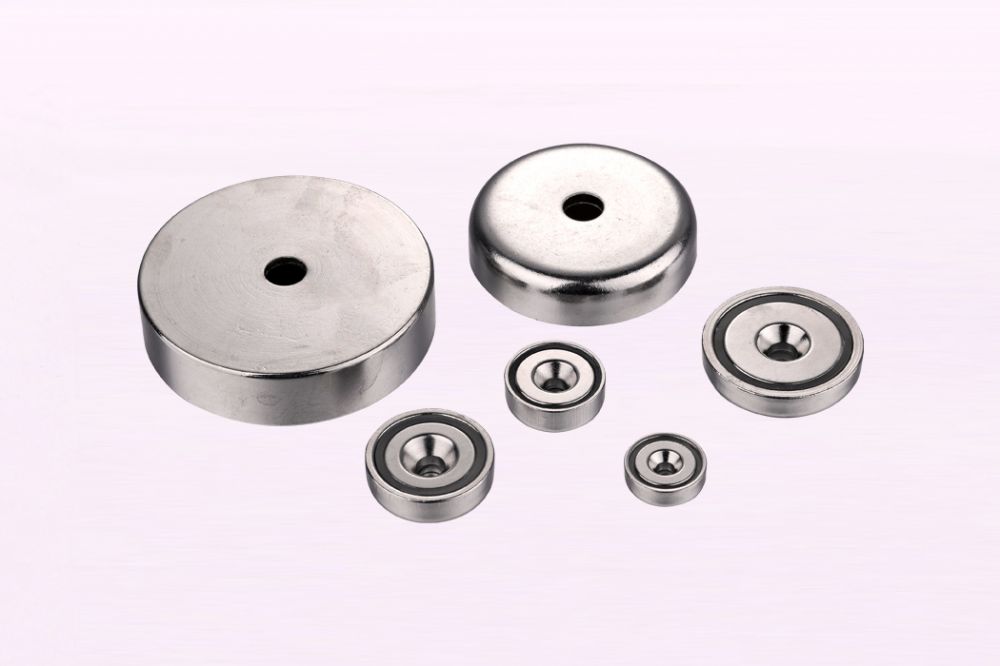

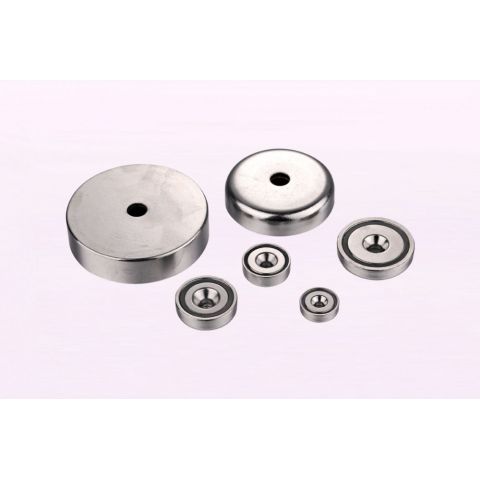

您所在位置：沉头孔吸盘PMYP-A系列
发布日期：2020-06-01浏览次数：154
品牌：日成
单价：面议
最小起订量：
供货总量：
发货期限：自买家付款之日起 天内发货
有效期至：长期有效
产品详情
尺寸：
| 型号 Model | D1 (mm) | D2 (mm) | H (mm) | 重量 Weight (g) | 吸力 Pull Force (kg) | 包装 Packing (Per Carton) (35*27*14CM) |
| EA10 | 3.5 | 6 | 4.5 | 3 | 1.5 | 2800 |
| EA12 | 3.5 | 6 | 5 | 4 | 3 | 2500 |
| EA16-2 | 3.5 | 6 | 5 | 5.5 | 5 | 2160PCS |
| EA16-3 | 3.5 | 6 | 5 | 5.5 | 5 | |
| EA20-1 | 4.5 | 8.3 | 7 | 12 | 9 | 2000PCS |
| EA20-2 | 4.5 | 8.3 | 7 | 12 | 9 | |
| EA20-3 | 4.5 | 8.3 | 7 | 12 | 9 | |
| EA25-1 | 5.5 | 10 | 8 | 21 | 17 | 1000PCS |
| EA25-2 | 5.5 | 10 | 8 | 21 | 17 | |
| EA25-3 | 5.5 | 10 | 8 | 21 | 17 | |
| EA32-1 | 5.5 | 10 | 8 | 37 | 34 | 576PCS |
| EA32-2 | 5.5 | 10 | 8 | 37 | 34 | |
| EA32-3 | 5.5 | 10 | 8 | 37 | 34 | |
| EA36-1 | 5.5 | 10 | 8 | 45 | 40 | 480PCS |
| EA36-2 | 5.5 | 10 | 8 | 45 | 40 | |
| EA36-3 | 5.5 | 10 | 8 | 45 | 40 | |
| EA42-1 | 6.3 | 12 | 9 | 72 | 66 | 256PCS |
| EA42-3 | 6.3 | 12 | 9 | 72 | 66 | |
| EA48-1 | 8.3 | 17 | 11.5 | 125 | 80 | 200PCS |
| EA48-3 | 8.3 | 17 | 11.5 | 125 | 80 | |
| EA60-2 | 8.3 | 17 | 15 | 250 | 112 | 60PCS |
| EA60-3 | 8.3 | 17 | 15 | 250 | 112 | |
| EA75-1 | 10.3 | 18 | 18 | 465 | 170 | 32PCS |
| EA75-3 | 10.3 | 18 | 18 | 465 | 200 | |
| EA90 | 10.5 | 19 | 18 | 1150 | 300 | 12PCS |
| EA120-1 | 14.5 | 22.5 | 20 | 1710 | 400 | 5PCS |
| EA120-2 | 14.5 | 22.5 | 20 | 1710 | 500 | 5PCS |
| EA136 | 18 | 28 | 20 | 2330 | 600 | 5PCS |
